| Art. No: | 304000 | Valve Connection: | Elbow 2 1/2″-12-UN | |
| Length: | 550 mm | Check Valve Connection: | R 2″ | |
| Working Pressure: | 53 Bar | Burst Pressure: | 159 Bar | |
| Bending Radius: | 640 mm | Torque: | 30-40 Nm | |
| Material: | Synthetic rubber oil resistant | Temperature Range: | -40ºC to 100ºC | |
| Norm: | EN 853 2 SN |
RX5112 Hoses

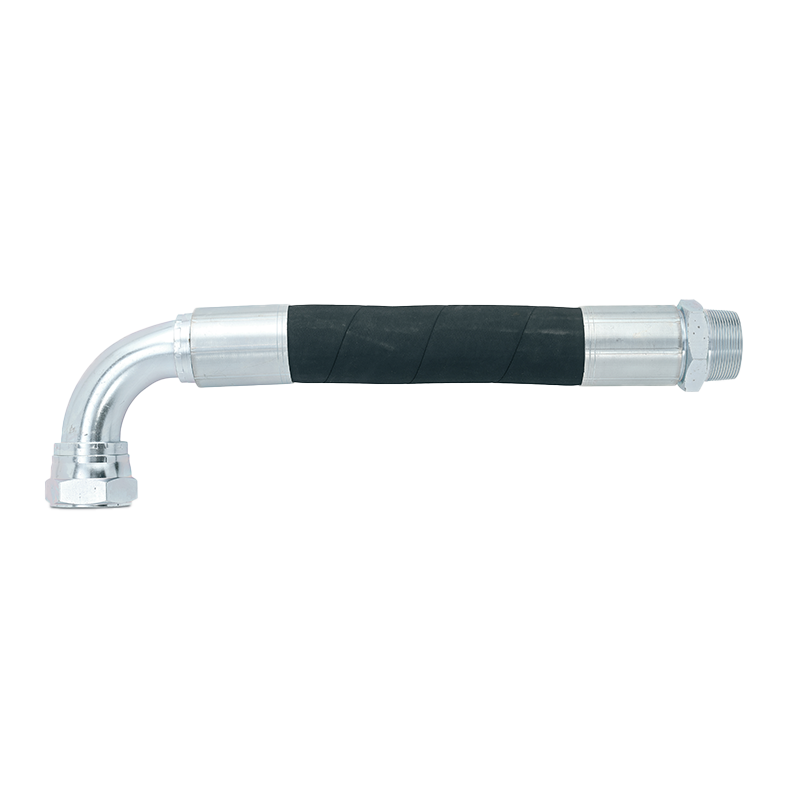

30400 – Discharge Hose 550 mm Elbow for B0481 valve
Discharge Hose 550 mm with elbow
For B0481 valves and 80-180 liter cylinders
Hose to connect the cylinder valve to the manifold in fixed fire suppression systems
Delivered with plastic cap for closing the insert gasket nut.
– Valve inlet connection: with 90º elbow connection
– Check valve outlet connection: with straight connection
Check valve (art no 304100) must be ordered separately. Attached between the hose and manifold.
Compliant with the Construction Products Regulation (CPR) V3 Oct. 2014
For quotations or more information, please contact us by email at: 4service@firespect.se
